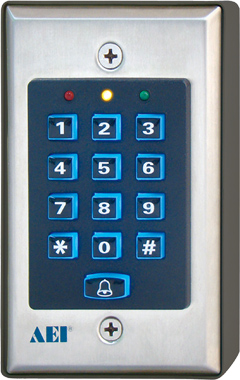

Model£ºDK-9581
Description: Digital Keypad Control Station With Doorbell Button
Features:
• Wide Range Operating Voltage 12-24V AC/DC
• Back-Lit Keypad
• 2 Outputs: 1 Relay Output, 1 Transistor Open Collector Output
• 500 Users
• Operates Fail-safe or Fail-secure Electric Locks
• Auto Code Entry or Manual Code Entry
• Door Forced Open Warning
• Door Left Open Too Long Warning
• Output Activation Announcer
• Pacifier Tone Inhibit Control, Audible or Silent Operation
• Keypad Locks or Alarms After 3-10 False Code Entries
• Tamper Beep Available or Tamper Beep Disabled
• Tamper Switch Can be Connected to Security Alarm System
• Key Activation, Alarm, Tamper Outputs
• Egress Input for Door-open Remote Triggering
• Doorbell Button
• Doorbell Button Triggers Doorbell Through Relay Contact (1A max)
• Features are Keypad Programmable
• Non-volatile Memory in Power Failure
• Stainless Steel Plate
• Flush Mount or Surface Mount
Technical Data:
| Operating Voltage |
: 12-24V AC/DC |
| Current Drain |
: Quiescent State=24-33mA, Active State=83-105mA (1 Relay actuated, all LED lighted) |
| Relay Output Contacts |
: N.O. and N.C. Dry Contacts, Max Rating of Contact Current 3A / 24V DC |
| Capacity of Recording |
: Output 1: 500 Codes
Output 2: 500 Codes |
| Dimension |
: 117(H) mm x 73(W) mm x 40(D) mm |
| Weight |
: 150g |
