Model£ºDK-9560

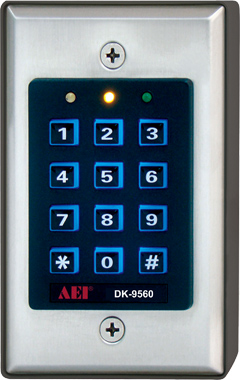

Description: Digital Keypad Control Station
Features:
• Wide Range Operating Voltage 12-24V AC/DC
• Simple Programming, Easy Operation
• Back-Lit Keypad
• 1 Relay Output
• 250 Users
• Multi User Code or Single User Code Operation
• Operates Fail-safe or Fail-secure Electric Locks
• Auto Code Entry or Manual Code Entry
• Keypad Locks for 30 Seconds After 10 False Code Entries
• Tamper Beep Available or Tamper Beep Disabled
• Tamper Switch can be Connected to Security Alarm System
• Egress Input for Door-open Remote Triggering
• Features are Keypad Programmable
• Non-volatile Memory in Power Failure
• Stainless Steel Plate
• Flush Mount or Surface Mount
Technical Data:
| Operating Voltage |
: 12-24V AC/DC |
| Current Drain |
: Quiescent State=25-33mA, Active State=61-79mA (1 Relay actuated, all LED lighted) |
| Relay Output Contacts |
: N.O. and N.C. Dry Contacts, Max Rating of Contact Current 3A / 24V DC |
| Capacity of Recording |
: 250 Codes or 1 Common Code |
| Dimension |
: 117(H) mm x 73(W) mm x 40(D) mm |
| Weight |
: 145g |
