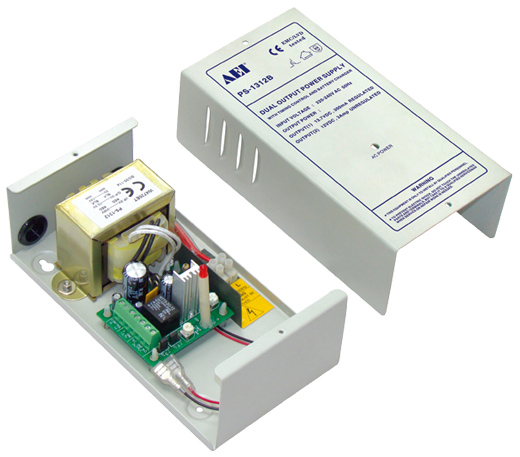

Model：PS-1312B POWER SUPPLY

Description: Dual Output Power Supply with Battery Back-up

Features and Technical Data:

• 220V-240V AC ~50HZ Input Voltage
• 12V DC at 3 Amp High Current Unregulated Power Source for Fail-Secure Type Electric Lock Striking and Security Alarm System that Require Back-up Power
• 13.7V DC at 300 MA Regulated Power Source for Access Control Device (Such as Access Control Station)
• Short Circuit Protected with Resettable Fuse and Back-up by a 12V/1.2AH Rechargeable Battery (Optional)
• Controllable Timing Relay Output Contacts
• Advanced Features: The Timing Relay Output Operated either by the Built-in Timer of the Power Supply, or by the Programmable Timer of the Control Station, the Timing is Programmable, No Affect to the Keypad Programming
• CE-LVD and CE-EMC Approvals

Dimension: 204x108x67 MM

Weight: 2.0 KG
