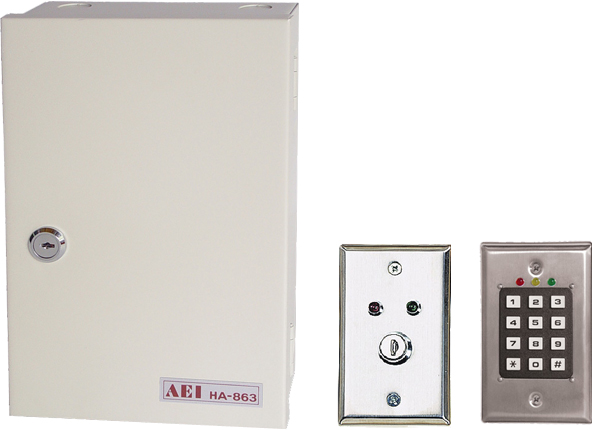

Model£ºHA-863R
Description: 3 Zone Security Alarm Control Panel
Features:
• 3 Protection Zones: Instant, Delay and 24 Hour Circuits, Designed for Residential and Small Commercial Premise
• All Protection Zones are End-of-Line Resistor Supervised, Compatible with Both N.O. And N.C. Sensors
• Simple Installation, Easy to Use, High Level of Quality and Reliability, Good for DIY and Professional Users
• Built-in Exit Delay, Entry Delay and Siren Timer
• Built-in Siren Driver and Output Relay Contacts
• Key Switch or Digital Keypad for Arm-Disarm Control
HA-863RK comes with a key switch station RKS-2L for arm-disarm control. The RKS-2L is a latch-type key switch with 2 LED indicators. Simply turn key switch to arm-disarm the system and the LEDs indicate the system status.
HA-863RD comes with a digital keypad control station DK-863C for arm-disarm control. The LED indicators on the DK-863C for indicating system status. Simply enter the digital user code to arm-disarm the system. The user code can be changed by owner.
Specifications:
| • Protection Zone |
: One Delay Zone, One Instant Zone (with handover function) and
One 24 Hour Instant Zone, N.C. and N.O. End-of-Line Resistor Supervised
|
| • Exit Delay |
: 60 Seconds Typical |
| • Entry Delay |
: 1-90 Seconds Adjustable |
| • Siren Duration |
: 30 Seconds-10 Minutes Adjustable |
| • Output Relay |
: 12V DC Output Contacts at Normal and Alarm Condition
¡¡N.C. Dry Contact at Normal Condition, Current Rating 3A Max |
| • Siren Driver |
: Drive Two 8-Ohm Horn Speaker Maximum, Warble Tone |
| • Operating Voltage |
: 16V AC |
| • Back-Up Power |
: 12V DC/3.5AH Rechargeable Lead Acid Battery (Battery not Included) |
| • Standby Current |
: 32mA |
| • Dimension |
: 258 x 172 x 72 mm |
| • Net Weight |
: 1.8 Kg |
Specifications are subject to change for modification without notice.
