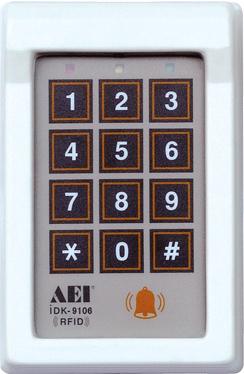

Model£ºiDK-9106
Description: RFID / Digital Keypad Control Station
Features:
• Built-in and Optional External Card Reader
• 3-Operation Mode: ID Card Operation, Digital Code Operation, ID Card + Digital Code Operation
• 2 Outputs: 1 Relay Output, 1 Transistor Open Collector Output
• 500 Users
• Operates Fail-safe or Fail-secure Electric Locks
• Auto Code Entry or Manual Code Entry
• Door Force Open Alarm
• Door Left Open Too Long Alarm
• Output Activation Announcer
• Pacifier Tone Inhibit Control, Audible or Silent Operation
• Keypad Locks or Alarms After 3-10 False Entries
• Tamper Beep Available or Tamper Beep Disabled
• Key Activation, Alarm and Tamper Outputs
• Can be Connected with Door-open Button and Doorbell
• Doorbell Button Triggers Doorbell Through Relay Contact (1 Amp max)
• All Features are Fully Keypad Programmable
• Non-volatile Memory in Power Failure
• Weatherproof Keypad Housing
Technical Data:
| Operating Voltage |
: 12V DC |
| Current Drain |
: Quiescent State=30mA, Active State=85mA (2 Relays actuated, all LED lighted) |
| Relay Output Contacts |
: N.O. and N.C. Dry Contacts, Max Rating of Contact Current 3A / 24V DC |
| Capacity of Recording |
: Output 1: 500 ID Cards or 500 Codes or ID Cards and Codes Mix total 500 Sets
Output 2: 500 Codes |
| Card Reading Distance |
: Max Distance 10 CM |
| Type of ID Card |
: EM Card 125 KHZ |
| Dimension |
: 129(H) mm x 84(W) mm x 41(D) mm. Weatherproof Plastic Case |
| Weight |
: 200g |
